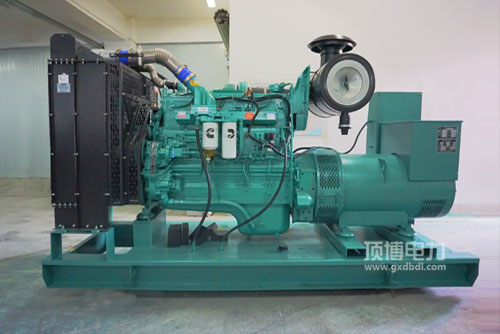

224-310KW广西顶博发电机组制造:康明斯发电用发动机可靠性高：高强度合金铸造缸体、可锻铸铁(FCD) 活塞，刚性更好，降低振动和噪声，提高了发动机适应更高的爆发压力。

High reliability: intensified alloy casting cylinder and Ferrous Cast Ductile (FCD) piston provide engine a better rigidity performance and lower vibration & noise, and also make the engine adapt to higher explosion pressure.

康明斯电站用打着机汽柴油社会整体可靠性好: 较为先进的汽柴油把握整体，独到的STC、ESTC 分类把握整体，特殊的方案的活塞杆顶部烧燃室，超高压喷涌汽柴油，彻底的雾化吸入，烧燃彻底的。

Good fuel economy: Advanced fuel control system, unique STC, ESTC step control system, specilly-designed piston topchamber and high pressure fuel injection lead to an excellent fuel consumption rate and emission performance of engine.

康明斯带发电用打火机瞬态效果非常好: 完美无缺的打火机建筑体来设计，协调康明斯特别的EFC设备，操作精确性强，崩溃周期快。

Excellent transient performance: perfect overall engine design with unique Cummins EFC system, high precision on control and quick response time.

康明斯发电量用启驱动力升功效高: 综合制定紧奏型.自己的外观流程有效，运动平衡。High lift power: Integrated and compact design, reasonable layout and smooth operation.

电喷网络制式 QSNT. QSK19. QSK38. QSK50满意国内非高架道路三过程及美洲Tier2. Tier 3的排放法律规范规定要求。

Electric fuel injection engines (QSNT,QSK19,QSK38,QSK50) meet the Tier3 emission regulations for China non-road vehicles and Tier2 & Tier3 emission regulations of North America.

零备品备件可要性好， 热车机开机运行及保障护理方便，成本预算低。Good availbility of spare parts, smooth engine operation, convenient engine maintenance and low cost.

发动机规格Engine Specifications

工率领域 Power Range   224-310KW型号规格 Type   直列/六缸/四冲程/四气门  In-ine/6-Cylinder/4-Stroke/4-Valve缸径x冲程 BoreX Stroke  125X 147mm排量 Displacement   11L外观简约时尚面积 Dimension  长X宽X高(LXWX H) 1360 x 833X 1068 mm净水平 Dry Weight   940kg

224-310KW康明斯火力发电用热车机的特性：容积小， 缩短变高， 除雾器自然空气高温，有利于开启，移动手机车载一体机电源适配器的先选。Compact size, high compression ratio, gile heated by air, easy for start-up, the first option of mobile vehicle power supply.

推荐机型Engine Models Recommended

汽车发倾向具体型号	经常用功效(kW)Prime Power	紧急输出功率kW)Standby Power
MTA11-G2	224	246
MTAA11-G3	282	310
